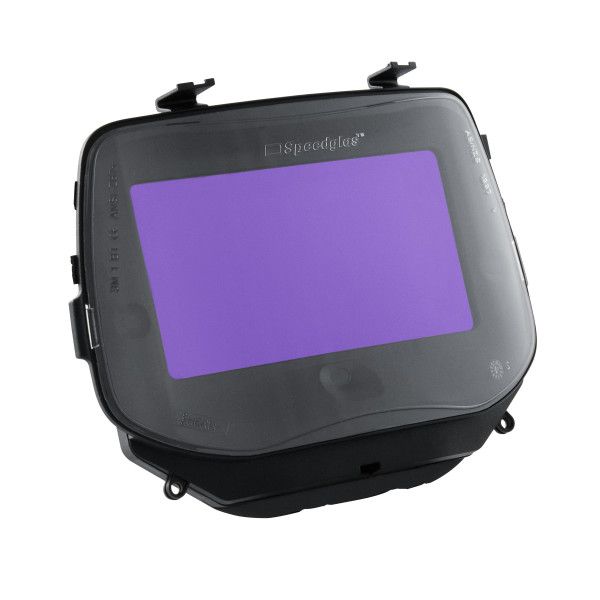

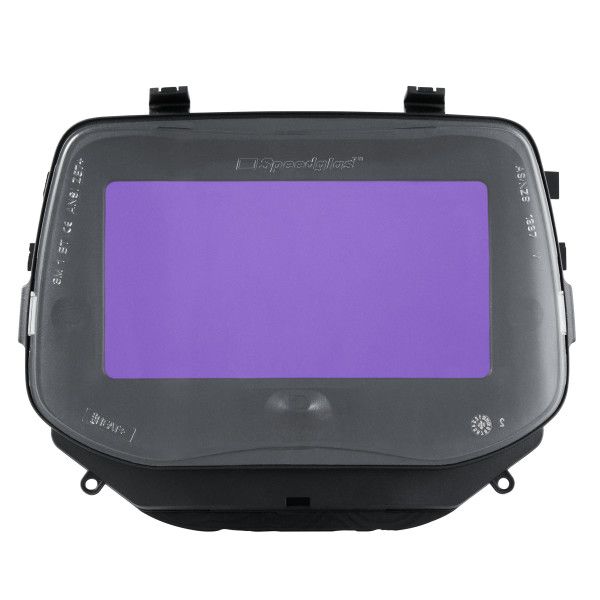

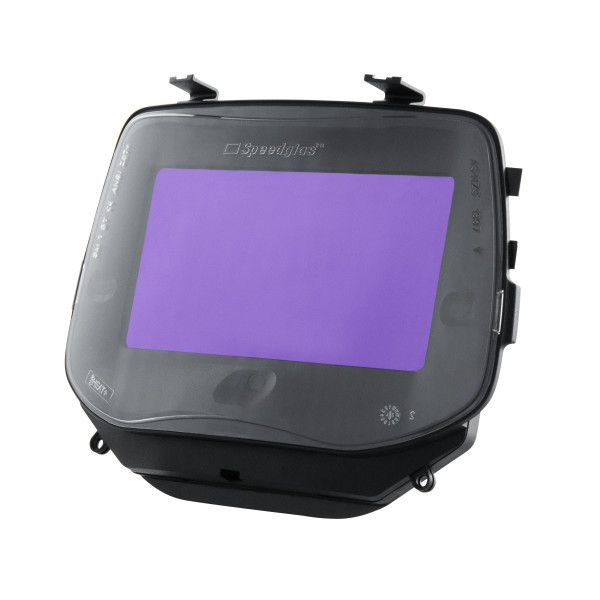

3M™ Speedglas™ Auto Darkening Welding Filter NC (Natural Colour Technology), 630010. The G5-01/03NC welding filter, from the G5-series welding filters, has our NC Technology so welders can see colours more naturally and have improved contrast during welding.

Identification

3M ID: 7100332554
old 3M ID: UU013038052
Distribution Chain Material Status Code: 10
Division Name: Personal Safety Division
Commodity Class Code: 4310
Product Type: Filtro de Escurecimento Automático
Brand: Speedglas™
Commodity Class Description: Welding

Marketing Content

Product Name: 3M™ Speedglas™ G5 Series Auto Darkening Welding Filters
Description: 3M™ Speedglas™ Auto Darkening Welding Filter NC (Natural Colour Technology), 630010. The G5-01/03NC welding filter, from the G5-series welding filters, has our NC Technology so welders can see colours more naturally and have improved contrast during welding.
Long Description: Ensure you get the optimum level of protection from your 3M™ Speedglas™ Welding Helmets G5-01 and G5-03 Series, with 3M™ Speedglas™ Welding Filters G5 Series. 3M offers a range of auto-darkening filters and passive-filter alternatives. For maximum benefit, 3M™ Speedglas™ G5-01 filters also fit the G5-03 helmet and vice versa. For maximum safety and comfort, make it a habit to check your equipment regularly.

Benefits

• Robust, reliable fuction
• Compatible with both G5-01 and G5-03 helmets
• By selecting just the right welding filter settings for each task, you help reduce eye strain and may help improve the quality of the weld

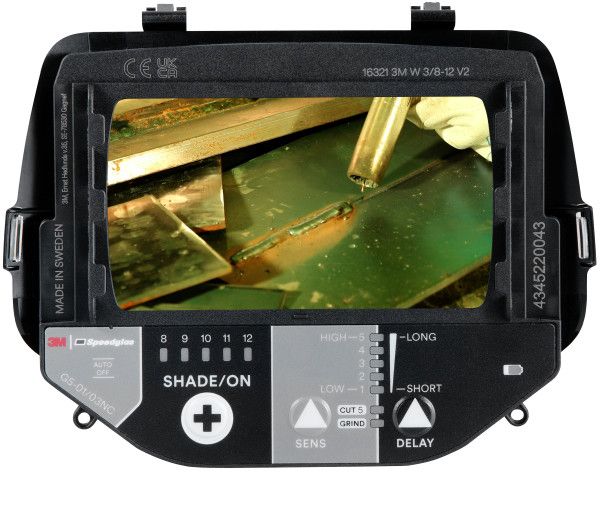

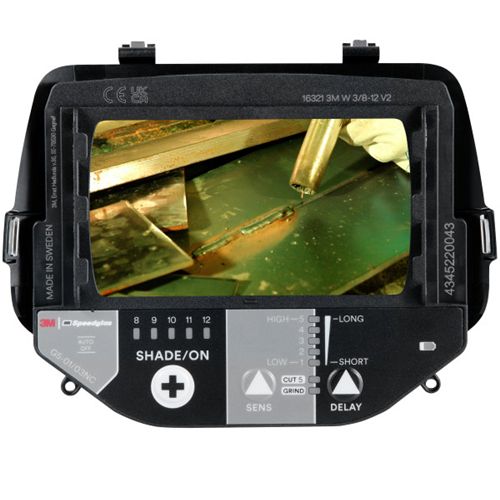

• Delay function to set the dark-to-light opening time. Possible to lock-in dark state
• Switching time (light-dark) 0.1 ms. The sensitivity of arc detection can be adjusted for increased switching reliability
Keywords: capacete de soldadura escudo soldagem Speedglas soldagem auto escurecimento capô de soldagem soldagem suprimentos soldagem TIG Kit de soldagem máscara de solda proteção para o rosto

Technical Attributes

Dangerous Goods Indicator: ZND
TDS Required: Sim
EU Taric Code: 9013808000

Industry Standards

eCl@ss 7.1 classification group: 21089290
eCl@ss 8.1 classification group: 21089290
eCl@ss 9 classification group: 21089290
eCl@ss 10 classification group: 21089290
ETIM Class 10.0: EC012178
ETIM Class 8.0: EC012178
ETIM Class 9.0: EC012178

Attributes 1

Auto On: No

Attributes 3

Compatible Welding Helmet: G5-01 Welding Helmets

Attributes 6

Lens Shade: 8 - 12
Lens Type: Cor natural (NC)
Light State: Tom 3

Attributes 9

Product Series: G5
Product Type: Filtro de Escurecimento Automático

Attributes 10

Shape: Plana

Attributes 12

Viewing Area (Metric): 55 mm x 107 mm

Packaging - Base Unit

Base Unit (B) - Article Number: 04064035172930
Base Unit (B) - Base Unit: EA
Base Unit (B) - Unit: EA
Base Unit (B) - Article Number Print Indicator: true
Base Unit (B) - Article Number Type Code: EAN
Base Unit (B) - Item Quantity: 1.0
Base Unit (B) - Mapped From: Activity Unit
Base Unit (B) - Metric Cubic Dimension: 1918.125 CCM
Base Unit (B) - Metric Height Dimension: 225.0 MM
Base Unit (B) - Metric Length Dimension: 155.0 MM
Base Unit (B) - Metric Width Dimension: 55.0 MM
Base Unit (B) - Metric Weight: 0.548 KG

Packaging - Consumer

Consumer (2) - Article Number: 04064035172930
Consumer (2) - Unit: EA
Consumer (2) - Article Number Print Indicator: true
Consumer (2) - Article Number Type Code: EAN
Consumer (2) - Item Quantity: 1.0

Packaging - Shipper

Shipper (6) - Article Number: 04064035172947
Shipper (6) - Unit: CS
Shipper (6) - Article Number Print Indicator: true
Shipper (6) - Article Number Type Code: ITF
Shipper (6) - Item Quantity: 10.0

Packaging - Pallet

Pallet (8) - Article Number: 04064035172954
Pallet (8) - Unit: PAL
Pallet (8) - Article Number Print Indicator: true
Pallet (8) - Article Number Type Code: EAN
Pallet (8) - Item Quantity: 240.0
